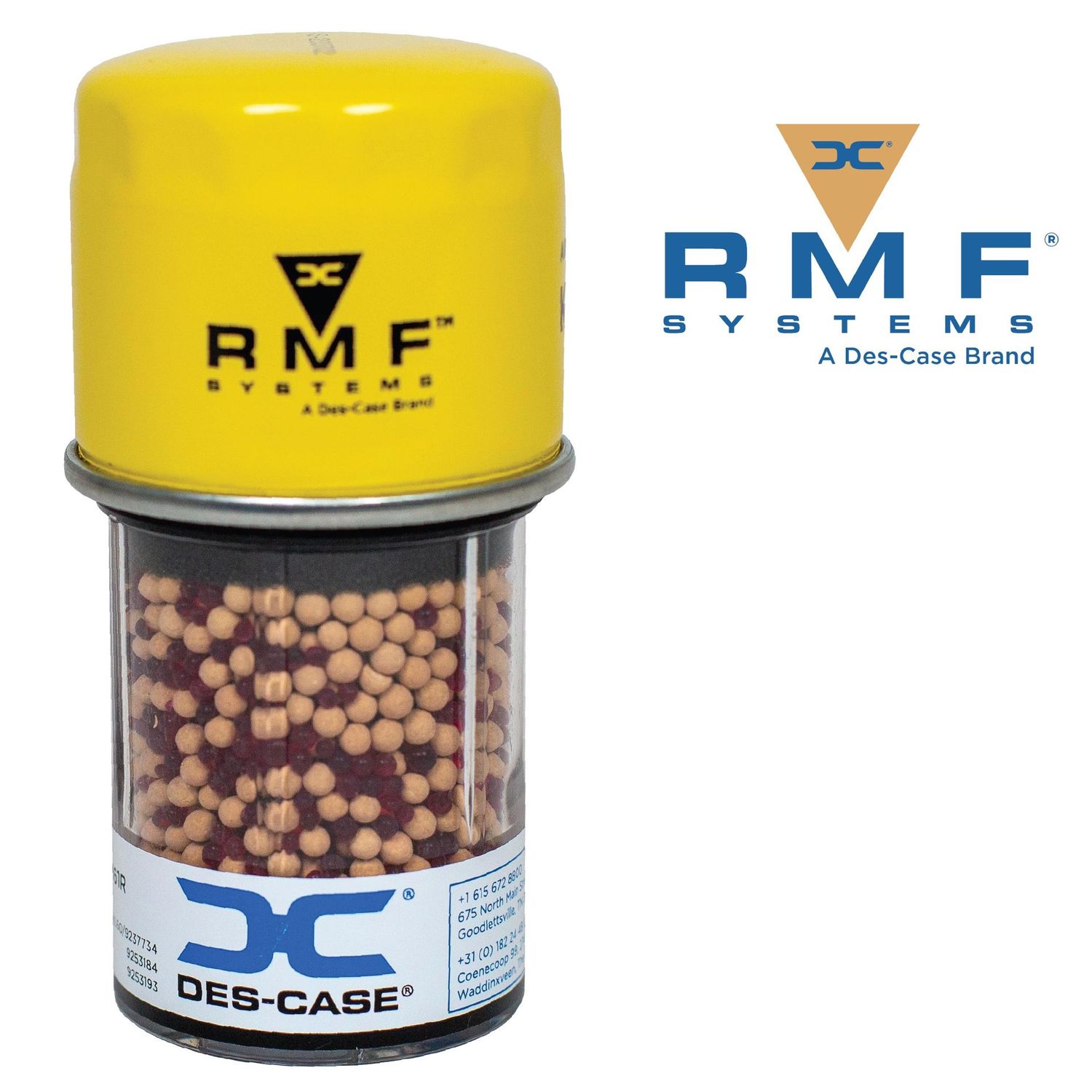

ACM Series - Serviceable Breathers
The RMF Systems ACM breathers are suitable for mobile and industrial applications because of their lightweight, rugged body. This series is fully serviceable and has optional check valves that prevent premature saturation of the silica gel and extend breather life. The spin on filter cap also provides a high dirt holding capacity.
Applications
- Hydraulics
- Mobile & off-road equipment
- Truck differentials
- Nautical applications

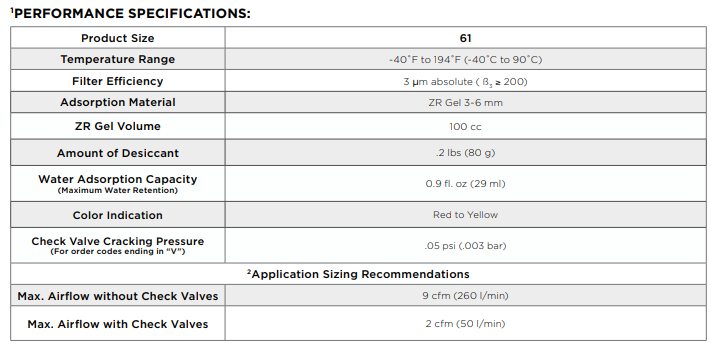

PERFORMANCE SPECIFICATIONS:
| Product Size |
61 |
| Temperature Range |
-40ËšC to 90ËšC |
| Filter Effi ciency |
3 µm absolute ( ß3 ≥ 200) |
| Adsorption Material |
ZR Gel 3-6 mm |
| ZR Gel Volume |
100 cc |
| Amount of Desiccant |
.2 lbs (80 g) |
| Water Adsorption Capacity (Maximum Water Retention) |
0.9 fl . oz (29 ml) |
| Colour Indication |
Red to Yellow |
| Check Valve Cracking Pressure (For order codes ending in “V”) |
.05 psi (.003 bar) |
Application Sizing Recommendations
| Max. Airfl ow without Check Valves |
9 cfm (260 l/min) |
| Max. Airfl ow with Check Valves |
2 cfm (50 l/min) |
