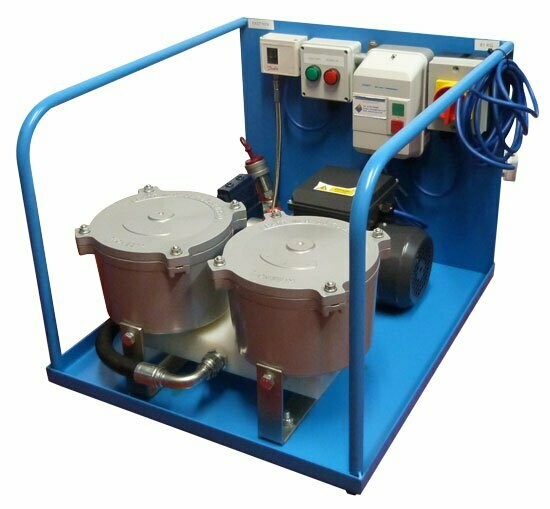

Twin Unit Oil Filtration System - Skid Frame

Unleash the unmatched flexibility of our Twin Unit Oil Filtration Systems, the workhorse of FA-ST filtration units. These fantastic filter units provide unparalleled flexibility in filtering oils, making them ideal for tanks up to 4000 litres in size. With an impressive flow rate ranging from 800 to 1200 litres per hour, these units are built to tackle the most demanding filtration tasks.

Constructed on a robust skid frame with handles, these filtration systems are designed for easy transportation, enabling effortless filtration across multiple tanks. The skid frame features integrated bunds and safety float switches to prevent spills and mitigate potential slip hazards, ensuring a safe and efficient filtration process.

Equipped with the Kleenoil 9788/KU85 filter housing, these units offer versatility with a broad selection of filter cartridges, allowing for the filtration of various fluids. Available as standard in 240v, these units can also be fitted with a 110v motor upon request. Choose our Twin Unit Oil Filtration Systems for reliable performance, durability, and unmatched flexibility in large-scale oil filtration applications. Browse our range now to find the perfect solution for your needs.

Additional Magnetic Filter

The design of these twin skid frame oil filter units allows for the MicroMag Magnetic Filters to be fitted to these systems. Magnetic filters are ideal for removing ferrous debris and rust build up from systems and will also increase the life span of the filter cartridges. Recommended for filtration of diesel in old storage tanks or those filtering fluids in cooling systems.

Filtration

Oil - This unit is suitable to filter oils up to 220 grade viscosity. For filtering oils the 1888H (MAX viscosity 120cSt. For 120cSt and above use 1888SH or 2088CPS ) filter cartridges should be used. For polishing oils the 1888SPT filters should be used. These filters can remove up up 2Kg or dirt and 1 litre of water before requiring replacement.

Diesel - This unit is fine for filtering diesel fuel. For filtering diesel the 1888H filter cartridges should be used. For polishing diesel the 1888SPT filters should be used. These filters can remove up up 2Kg or dirt and 1 litre of water before requiring replacement. When filtering diesel the flow rate will be approx. 400 litres per hour.

Coolants & Glycols - These can be filtered in this unit however you MUST use the 2088PP or 2088PP6 filter cartridges as these DO NOT ABSORB WATER making them ideal for coolant filtration and polishing.

Key Features

• Flow Rate - 800-1200 litres per hour dependent on viscosity, temperature, degree of contamination, and oil pressure.
• Can be fitted with a 5" MicroMag Magnetic Filter. These will remove can remove 900g of ferrous particles before reaching the oil filter increasing filter cartridge life
• Supplied with 3m suction and return hoses and 1x1888H filter cartridge ready to use.
• This unit come with 1 years warranty as standard.
